Spinning Top

The act of making is its own end! My friends may comprehend nothing of the object they have created, but are always richer for having been engaged in the act of making it. With little prior experience of working in disability services, I had no means of judging the progress of a lesson. More experienced people than I advised that I just need to look for smiles. In our work we create plenty of smiles as we jointly hold a project and thump away with two hands on the same hammer. Our spinning tops only made sense when an able pair of hands made them spin so many of them became gifts not personal toys. But again, we managed to spread the enthusiasm.

Idea One

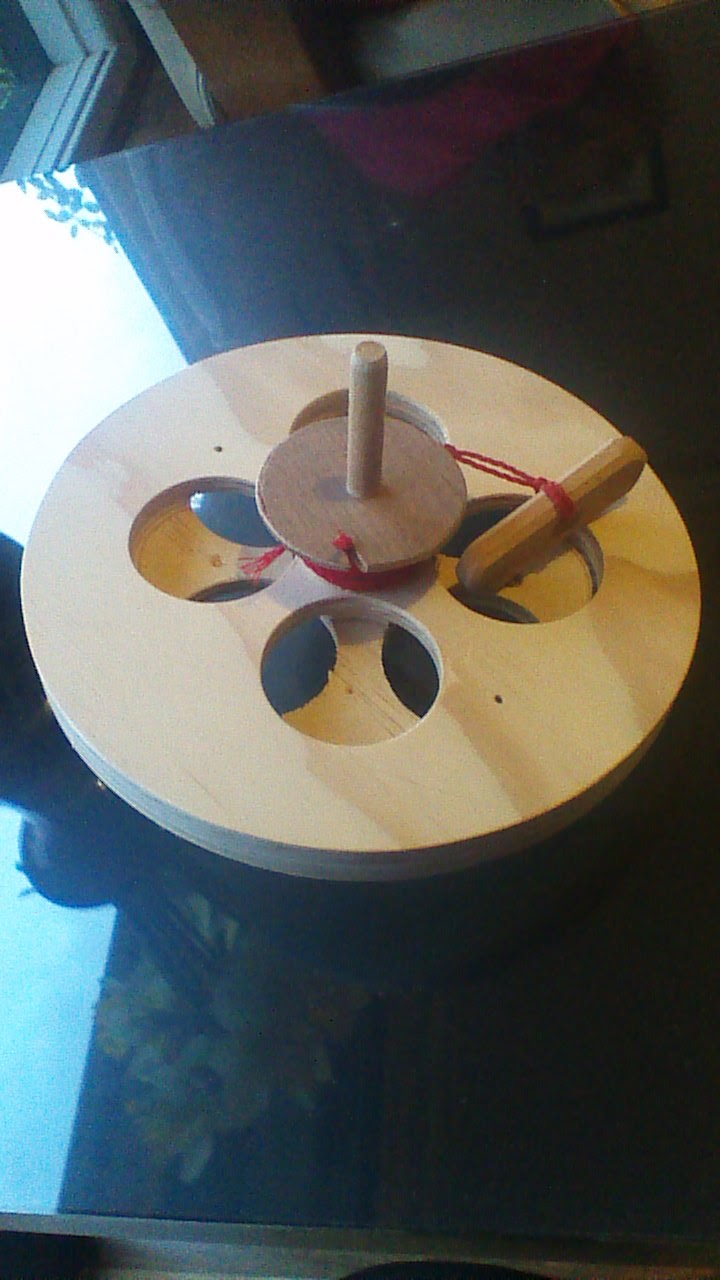

Here are three disks threaded onto a dowel. Top disk, 60mm dia., 6mm ply. In the middle is 18mm ply 40mm dia. On the bottom is the flywheel, 200mm dia., 18mm ply.

I hammered a 10mm dowel through 9.5mm holes. A little glue helps keep it all together. A pencil sharpener made the point.  The handle can be a piece of anything with an11mm hole drilled.

Most importantly, it spins forever! No tinkering to tune it up. Just one pull and it spins for a really long time.

Sadly, as cool as it may be, this is a reject idea; the making happens too quickly. Bang in one dowel and it is finished. When work with my friends so importantly exploits close time this really efficient construction reduces that co-operation time. But the idea is so good I will exploit it in some other work I do.

Idea Two

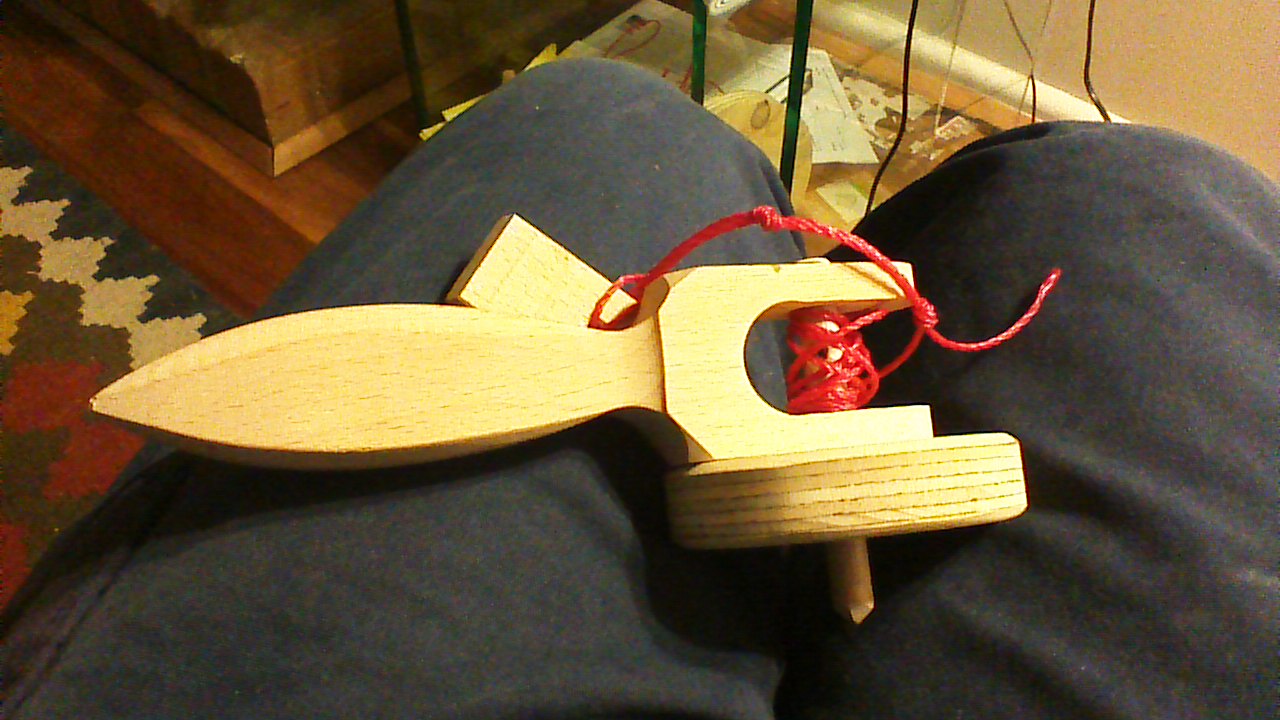

Launching the big top above takes a high level of dexterity. A bit  of  wobble while pulling the string puts the wide rim on the floor. So version two is smaller with a different handle.

This smaller top is even faster to make, but the handle takes me a really long time using machinery which I may not use with my friends. I enjoy the act of making too. Somehow I became so engaged that I forgot who the project was for and made a handle for myself. Time required makes this handle silly as a batch production exercise. Spinning time for this smaller model is reduced from the big one but the smaller scale is cheaper on materials.

Idea Three

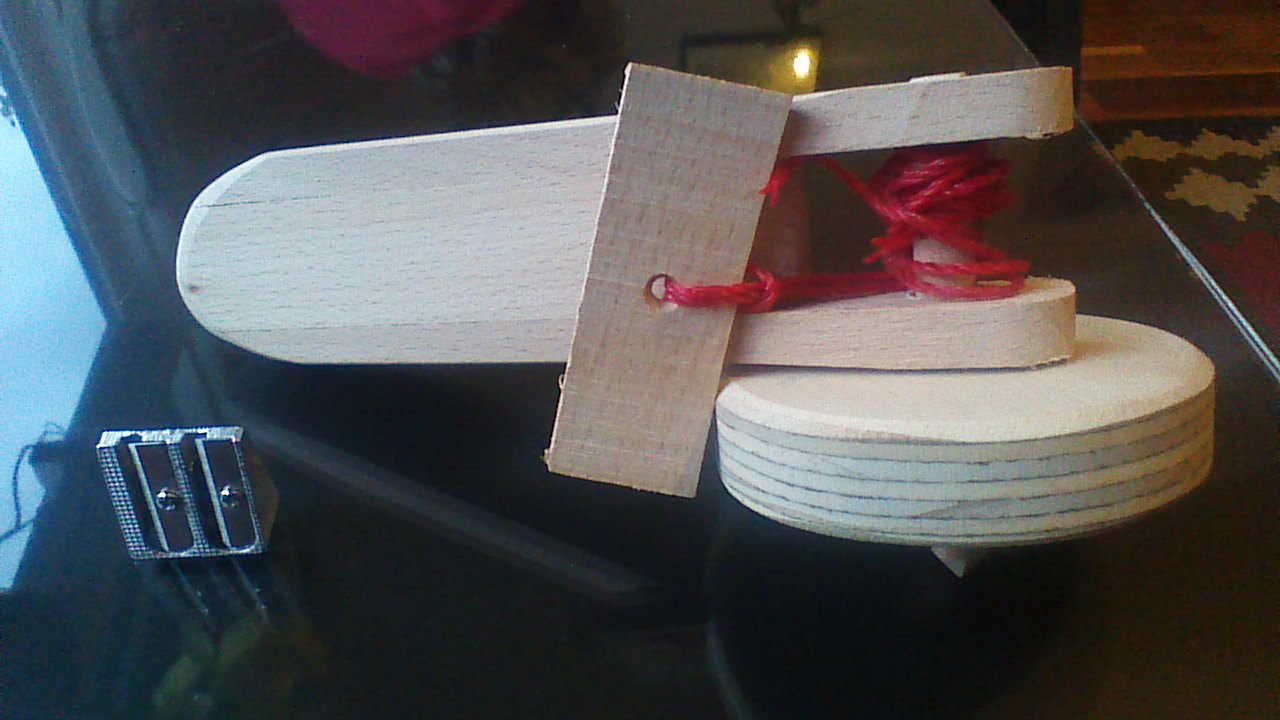

Success this time. The top is the same as the last attempt, but the handle is fabricated rather than carved. Fabricating the handle sets up an opportunity to bang in dowels together.

 A puzzle can be solved as handle parts are stacked in order. Then, together, we will drill four holes and hammer in four dowels.

That pencil sharpener above is how we put a point on the end of the shaft. For string, use any strong thread and drill an appropriate hole in the shaft.
